Synthesizing Electrocardiogram (ECG) from Photoplethysmogram(PPG) using Generative Adversarial Networks

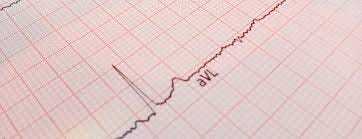

A normal ECG wave depicting the P wave, QRS complex, and T wave
A typical ECG and PPG curve representation
A CycleGAN structure with generators and dual discriminators
  1. Dataset collection and Preparation:
  • Four datasets were used for this purpose namely BIDMC, CAPNO, DALIA, and WESAD. All the ECG-PPG data were combined to form a large multi-corpus.
  • Each of these datasets had a different number of attributes, patient information and variable sampling, and recording lengths.
  • All the combined corpus of data was resampled using an interpolation technique where the sampling rate for all ECG-PPG records became 128 Hz.
  • As a next step, a bandpass FIR-filter, as well as Butter worth filter, were applied to the PPG signals.
  • Then, Z-score normalization was performed on both the ECG and PPG data.
  • This normalized data is split into intervals of 4 seconds each with some degree of overlapping to avoid losing any data.
  • Finally, a min-max normalization was applied to ensure that the input being to the network all lie within the same range.
The architecture of Proposed CardioGAN
  • As a generator, an Attention-based U-Net was used with self-gated soft attention in usage to filter those features that pass through skip connections.
  • Dual discriminators were used to classifying the time and frequency components of a PPG signal correctly from the fake data.
  • CardioGAN was then trained in an unpaired fashion where ECG and PPG signals were shuffled and were given as input to the network with a batch size of 128.
  • With adam optimizer in action, the model has shown improvement with increased batch size and training time.
  • CardioGAN produced generated ECG and generated PPG signals as the main outputs.
  • Considering our end goal to generate the best ECG signal from the PPG signal, qualitative and quantitative results have been analyzed to put forward a conclusion.
  • It was understood that the Heart rate measure from generated output was more precise than the original ECG signal itself.
  • CardioGAN was able to generate the shape of the original ECG signal from a given PPG signal.
Sample outputs the CardioGAN network structure

--

--

--
